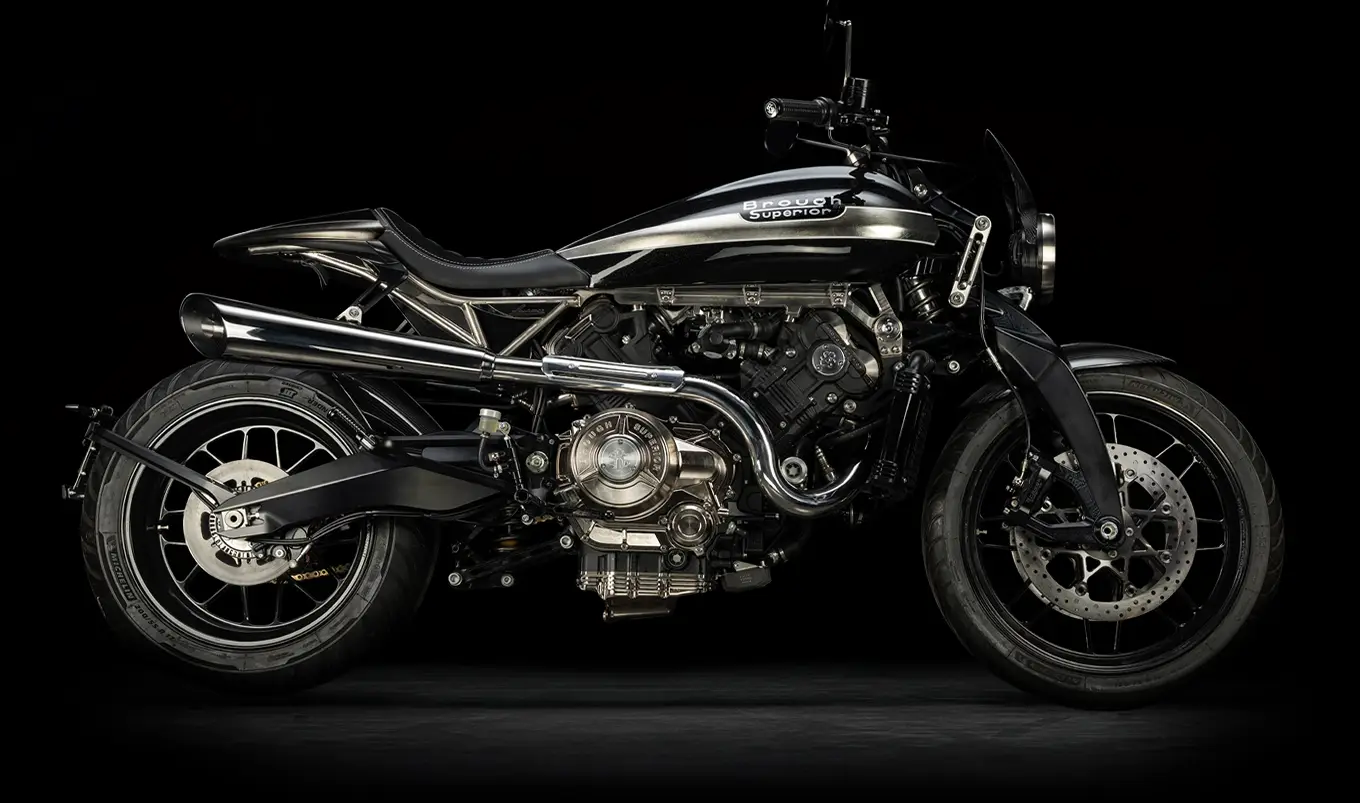

A Brough legend, newly finished
Limited to 188

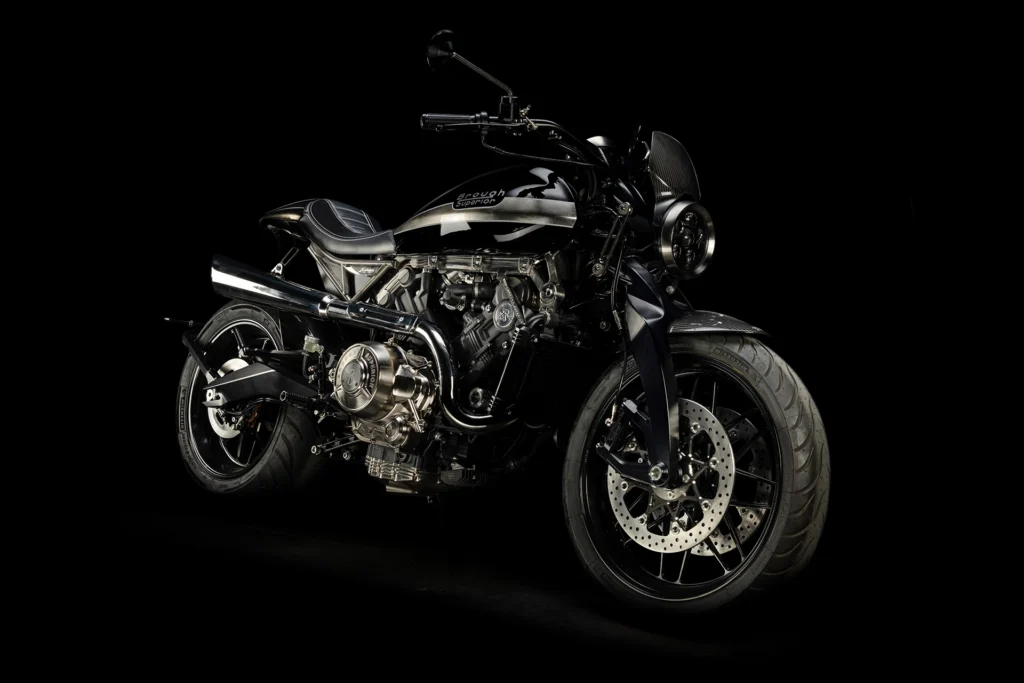

The Lawrence NPC gives Brough Superior’s two-seater a finish developed for aerospace: Nickel Phosphate electro-deposition. Applied to selected chassis and engine parts, it gives a subtle golden hue that sits alongside the titanium and recalls the nickel-plated tanks of the 1920s.
Technical Specifications
Dimensions
- Length
- 2240mm
- Width
- 920mm
- Seat Height
- 810mm
- Wheelbase
- 1540mm
Engine
- Engine
- 997cc watercooled dohc 88° V-twin four-stroke with four valves per cylinder and composite chain / gear cam drive
- Dimensions
- 94 mm x 71.8 mm
- Power
- 102bhp (75kW) at 9600rpm Euro 4 Homologation
- Maximum Torque
- 87Nm (64lb-ft) at 7300rpm
- Compression Ratio
- 11 : 1
- Fuel
- Electronic fuel injection with Synerject ECU and 2 x 50 mm Synerject throttle bodies, each with a single injector
- Tank Capacity
- 17 L
- Gearbox
- 6-Speed
- Clutch
- Multiplate oil-bath clutch with hydraulic operation
Frame
- Frame
- Machined Titanium frame with Titanium subframe
- Front Suspension
- Fior-type fork CNC machined from solid aluminum with twin articulated triangular titanium links and Preload and rebound adjustable mono-shock with 120mm travel
- Rear Suspension
- Pivoting swingarm CNC machined from solid aluminum in engine crankcases, with mono-shock adjustable for preload and rebound damping and progressive rate link with 130mm travel
- Head Angle / Trail
- 24.6° with 108.3mm trail via 37.1mm fork offset
- Front Brake
- 2 x 320mm Beringer Stainless Steel discs with 2 x two-piston Beringer radial calipers
- Rear Brake
- 1 x 230mm Beringer Stainless Steel disc with 1 x two-piston Beringer radial caliper
- Wheels
- Machined aluminum wheels (7 spokes)
- Front Tire
- 120/70 – 19’’ on 3.50 inches
- Rear Tire
- 200/55 – 17’’ on 6.25 inches
- Weight / Distribution
- 200 Kg (410 lb) split 50/50
Built for Two, Finished in Nickel Phosphate
T.E. Lawrence owned seven Brough Superiors, and the marque’s modern two-seater carries his name. Its flowing lines take their cue from the curve of the Bedouin dagger he wore. Each one is handcrafted in Toulouse to its owner’s specification.

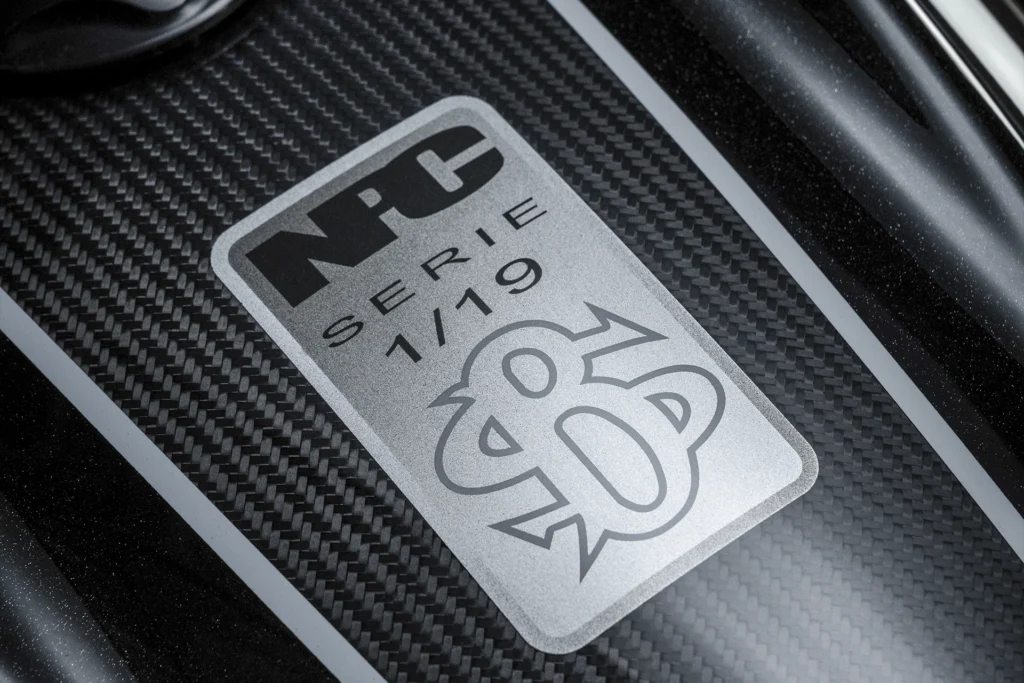

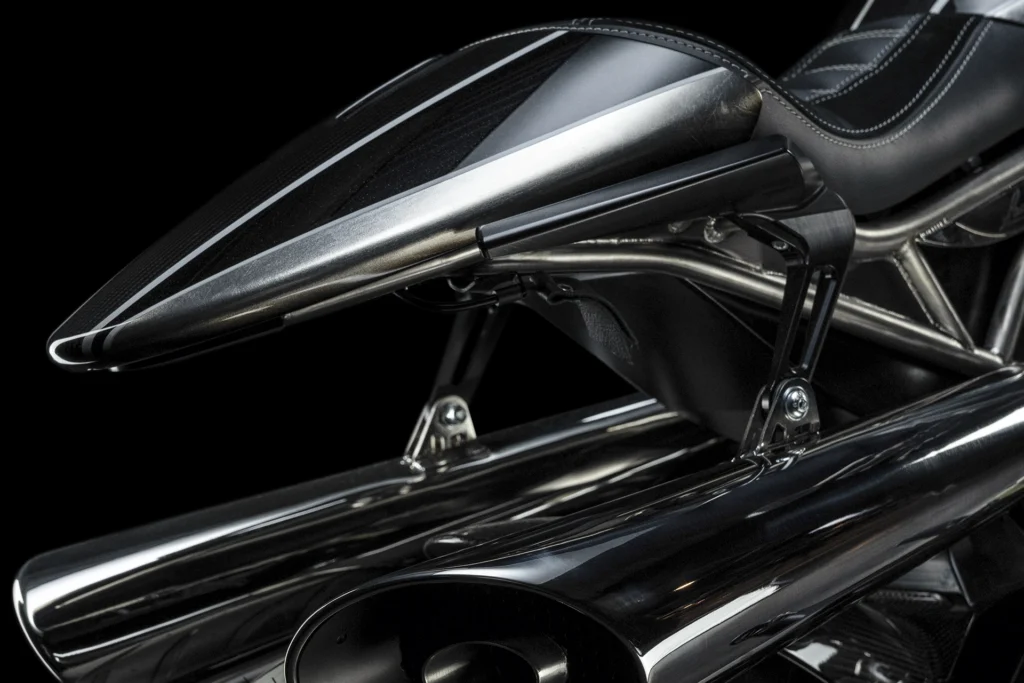

The NPC series takes its name from Nickel Phosphate electro-deposition, a process first used to protect reactor and rocket engine components. The coating is extremely fine; it hardens and shields each part while giving it a subtle golden hue. It is applied to a considered selection of the Lawrence’s signature chassis and engine components. The warm grey sits naturally beside the titanium, and the golden reflections recall the nickel plating of Brough Superior’s 1920s fuel tanks, a finish of the era before chrome.
