Super Sports 100: Ultimate & numbered

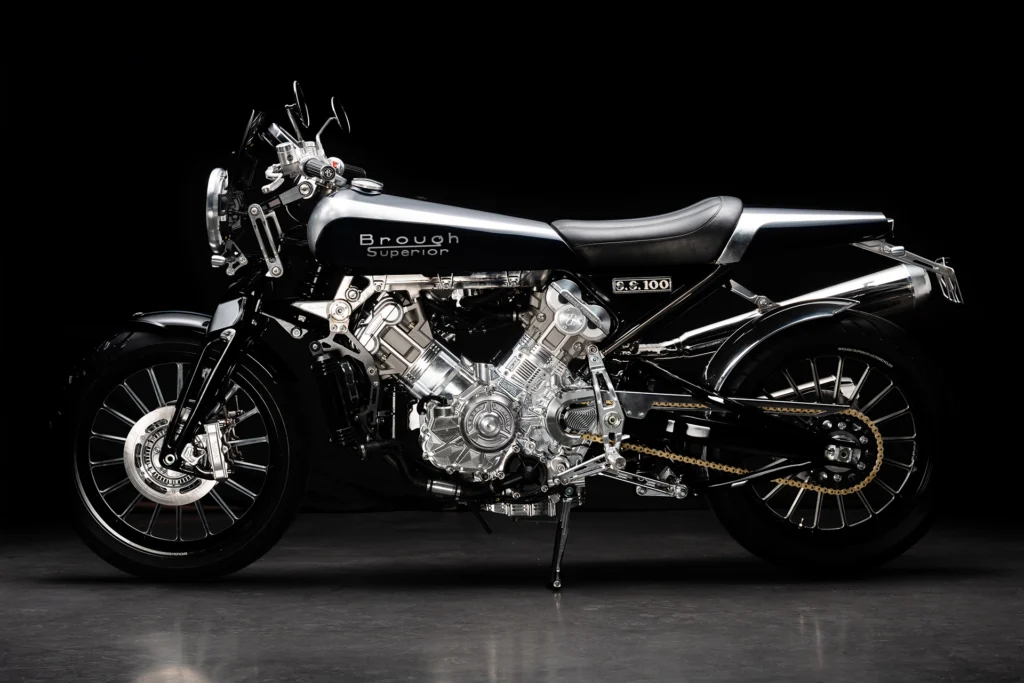

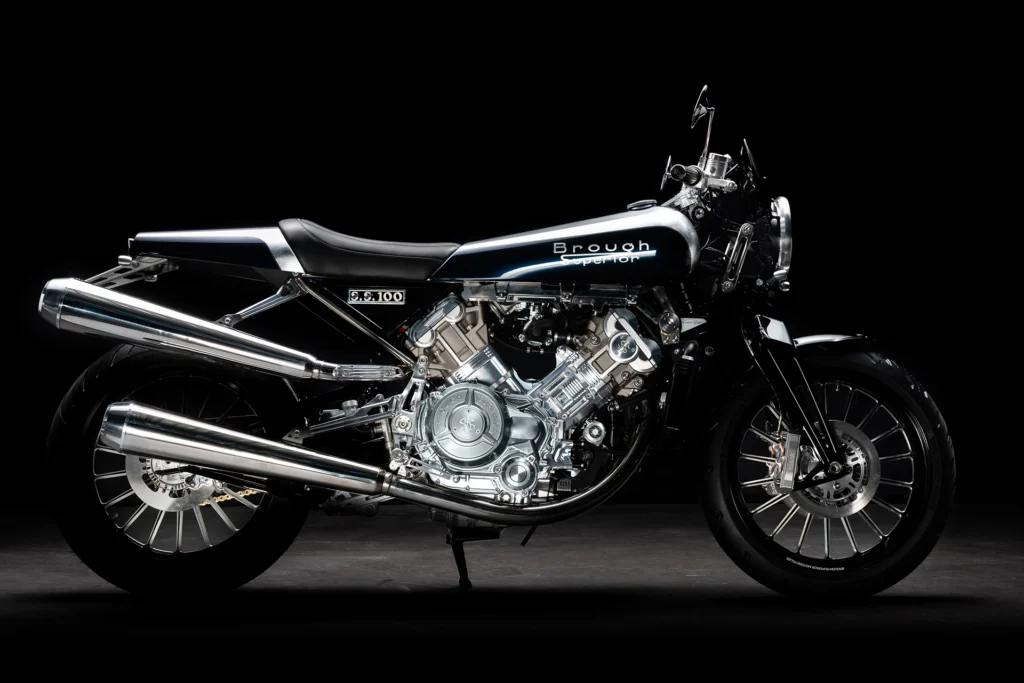

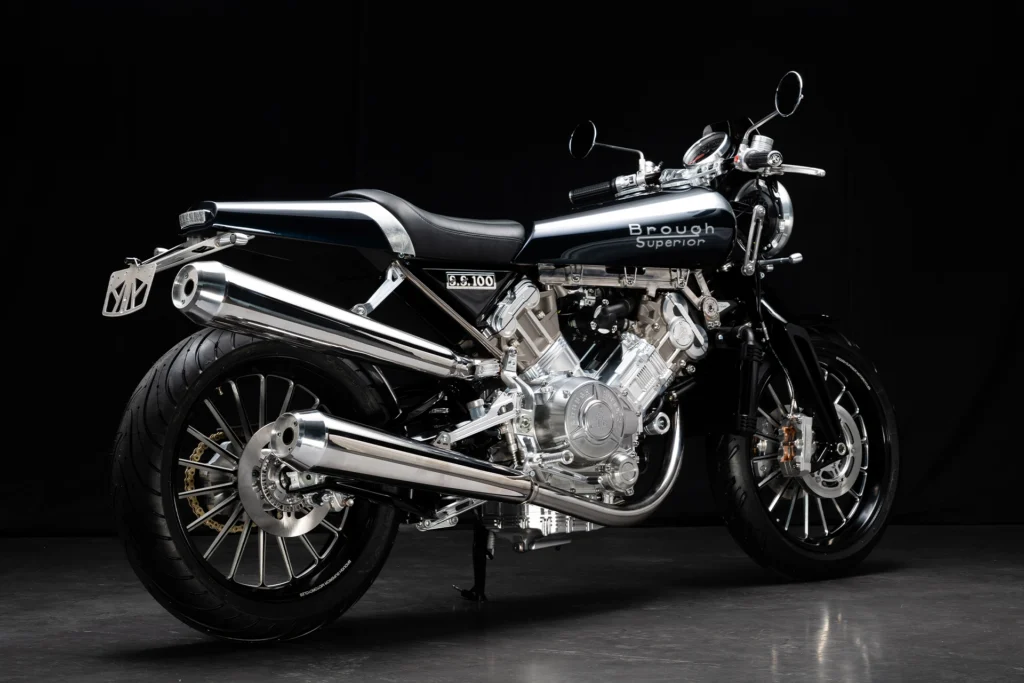

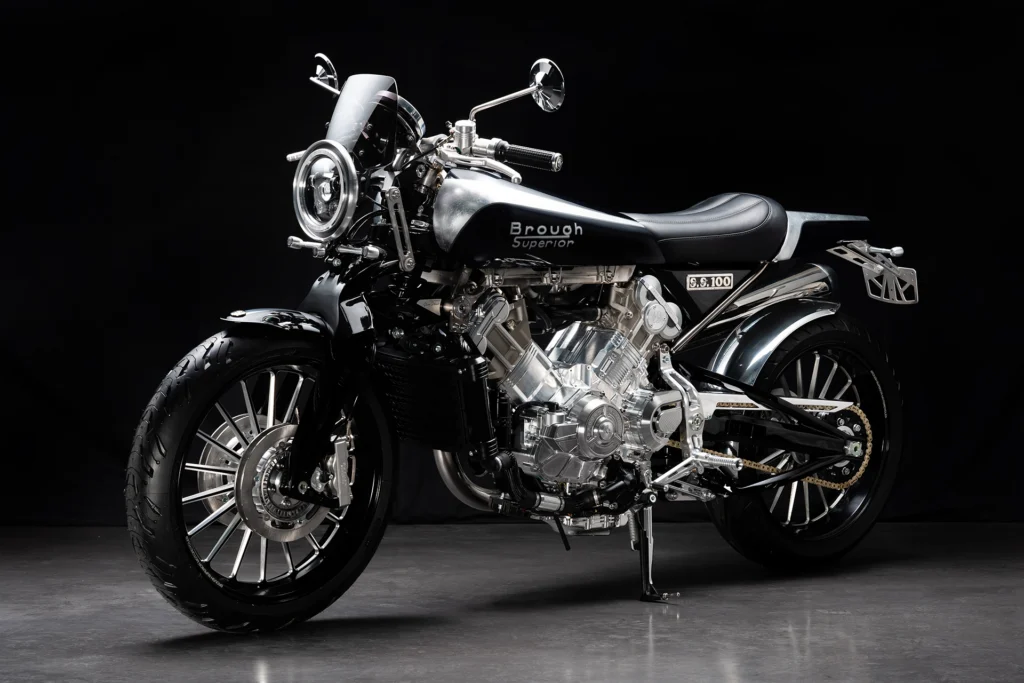

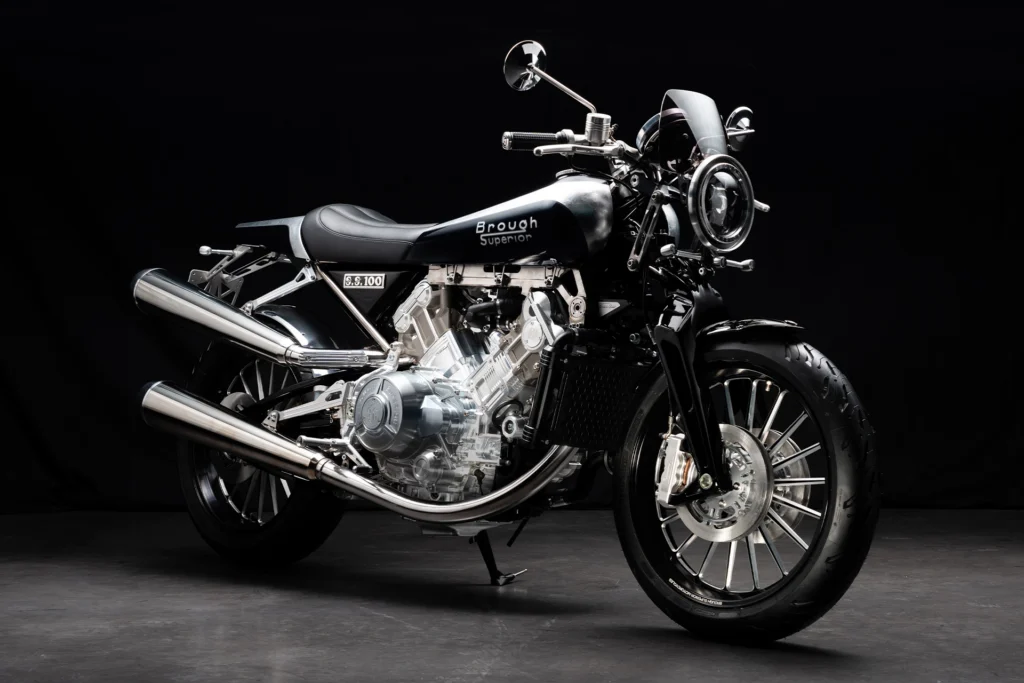

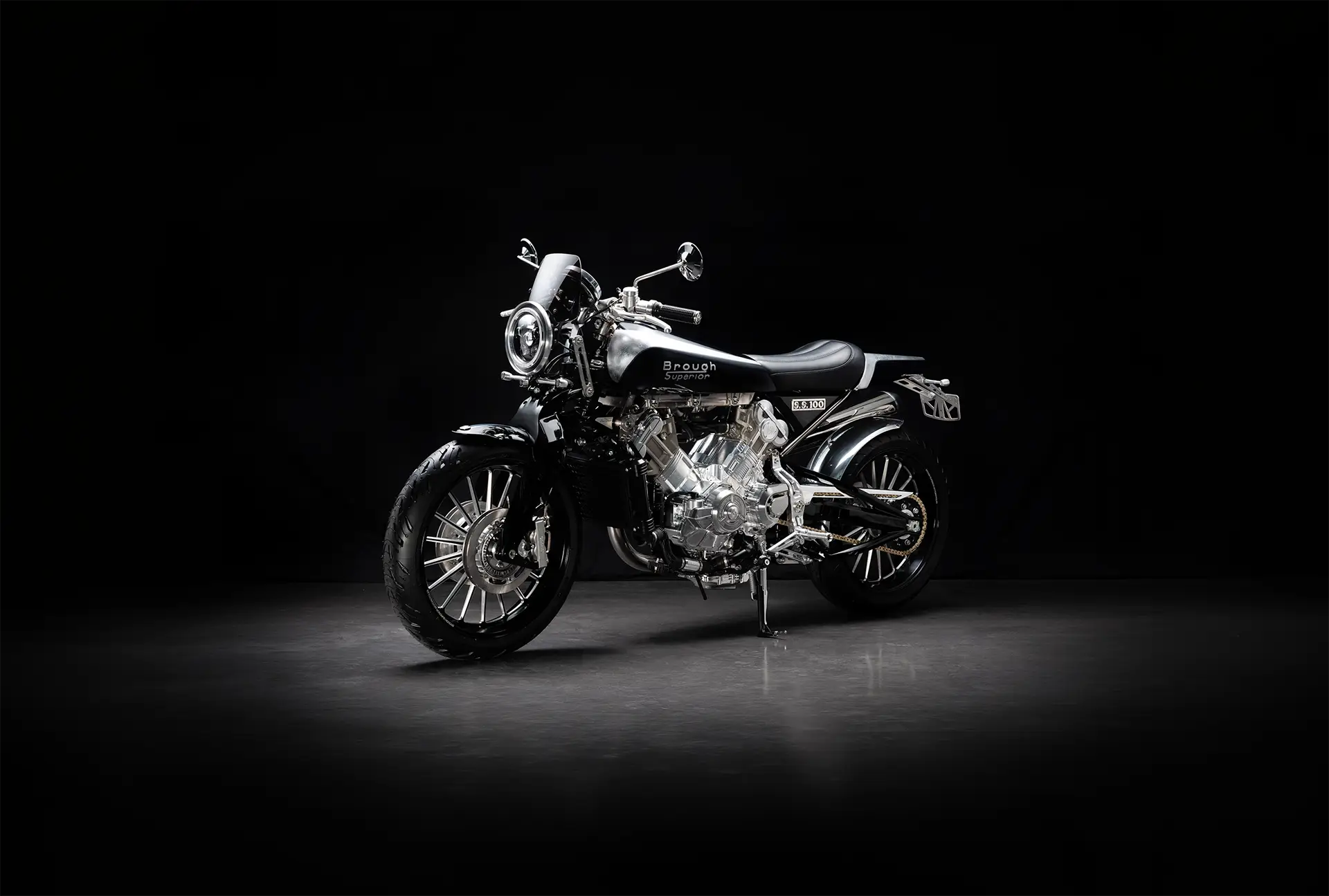

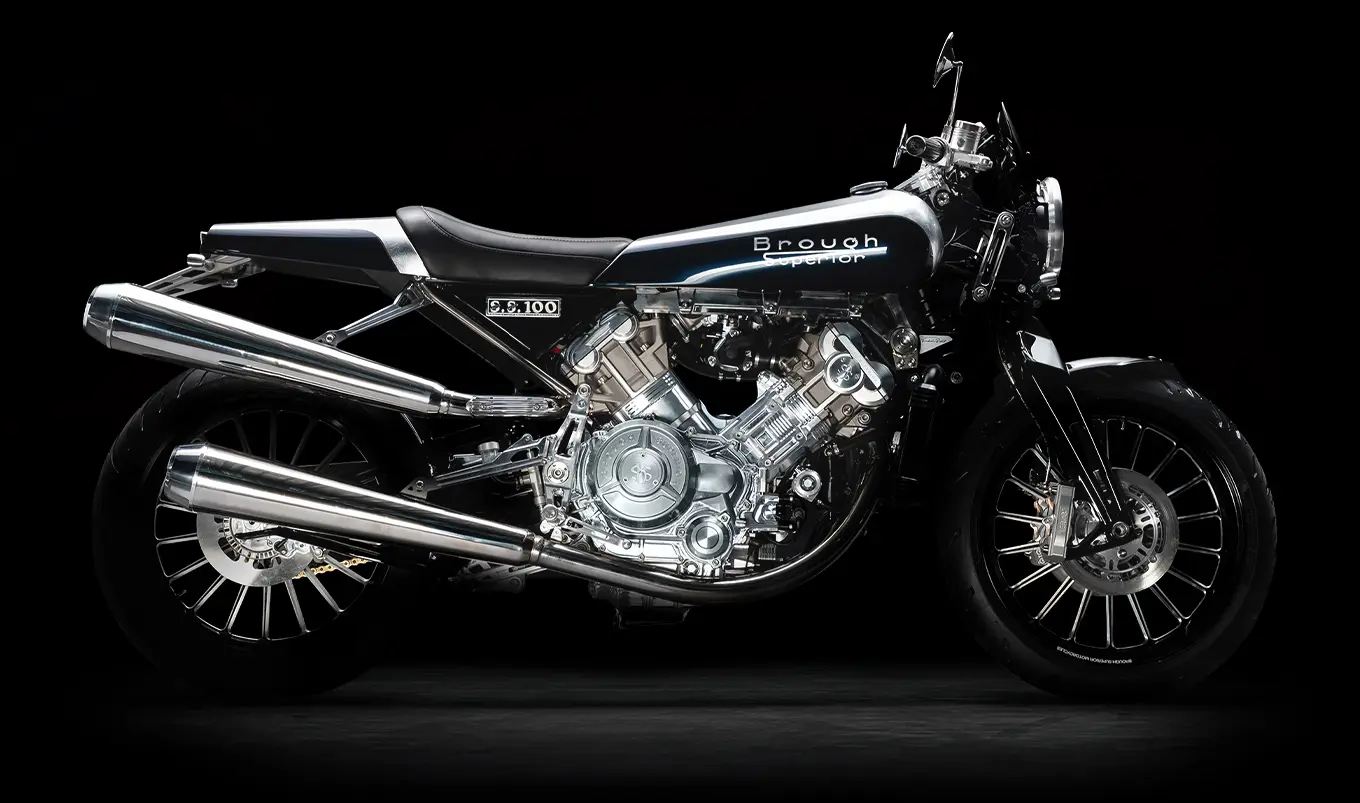

The SS100 Ultimate is one of 19 numbered examples. It’s built around a 997cc twin whose engine blocks are CNC-machined from solid aluminium in Toulouse, using expertise developed for the Aston Martin AMB 001 Pro. A silver stripe runs down each side of the tank.
Technical Specifications
Dimensions
- Length
- 2180mm
- Width
- 760mm
- Seat Height
- 820mm
- Wheelbase
- 1540mm
Engine
- Engine
- 997cc watercooled dohc 88° V-twin four-stroke with four valves per cylinder and composite chain / gear cam drive
- Dimensions
- 94 mm x 71.8 mm
- Power
- 102bhp (75kW) at 9600rpm Euro 4 Homologation
- Maximum Torque
- 87Nm (64lb-ft) at 7300rpm
- Compression Ratio
- 11 : 1
- Fuel
- Electronic fuel injection with Synerject ECU and 2 x 50 mm Synerject throttle bodies, each with a single injector
- Gearbox
- 6-Speed
- Clutch
- Multiplate oil-bath clutch with hydraulic operation
Chassis
- Frame
- Machined Titanium frame with Titanium subframe
- Front Suspension
- Fior-type fork CNC machined from solid aluminum with twin articulated triangular titanium links and Preload and rebound adjustable mono-shock with 120mm travel
- Rear Suspension
- Cast aluminum swingarm pivoting in engine crankcases, with monoshock adjustable for preload and rebound damping and progressive rate link with 130mm travel
- Head Angle / Trail
- 23.365° with 93.65mm trail via 38mm fork offset
- Front Brake
- 4 x 230mm Beringer Stainless Steel discs with 2 x four-piston Beringer radial calipers
- Rear Brake
- 1 x 230mm Beringer Stainless Steel disc with 1 x two-piston Beringer radial caliper
- Wheels
- Machined aluminum wheels (18 spokes)
- Front Tire
- 120/70 – 18’’ on 3.50 inches
- Rear Tire
- 160/60 – 18’’ on 4.25 inches
- Weight / Distribution
- 186 Kg (410 lb) split 50/50%
Brough’s First Genius, Numbered
George Brough built his machines on a single conviction: only the best was acceptable. The modern SS100 carries that standard forward. It keeps the classic form of the original Super Sports, and each one is handcrafted to order for its owner in Brough Superior’s French workshop.

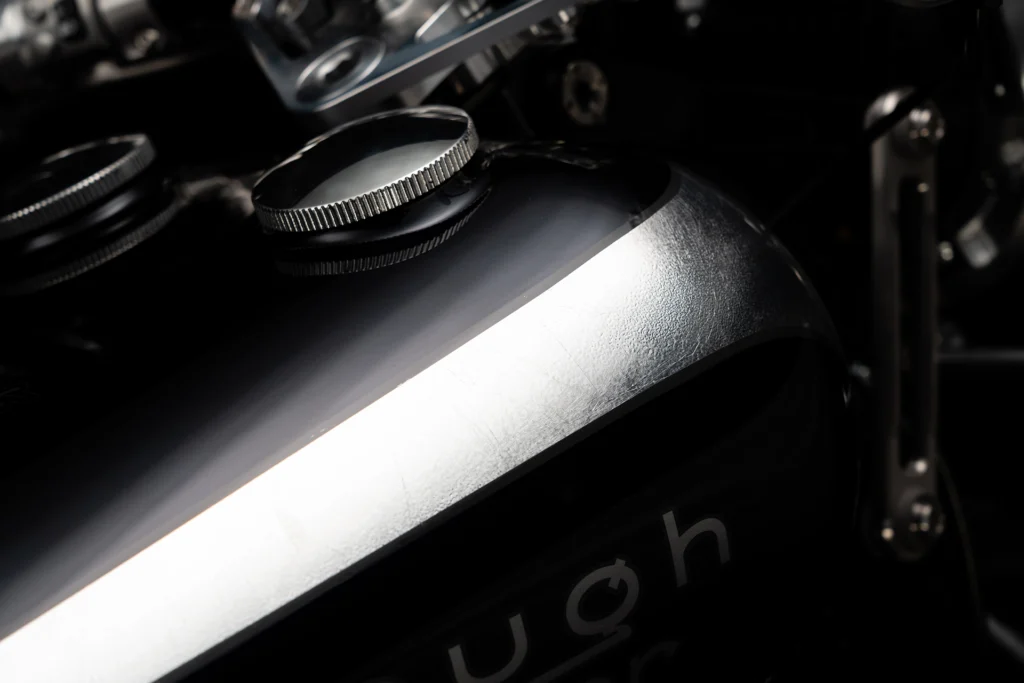

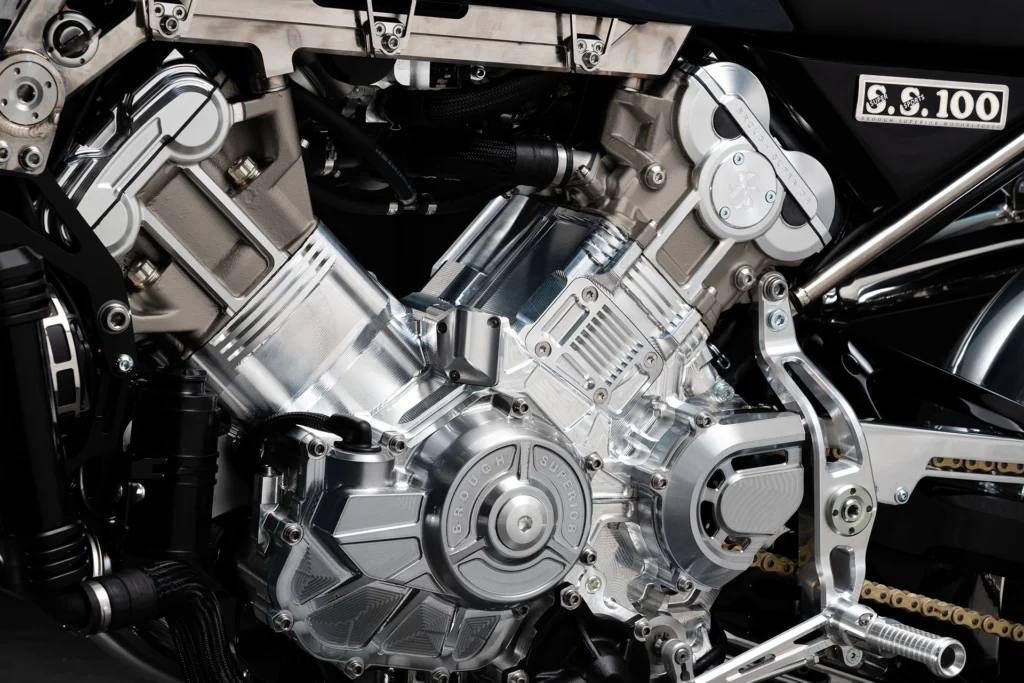

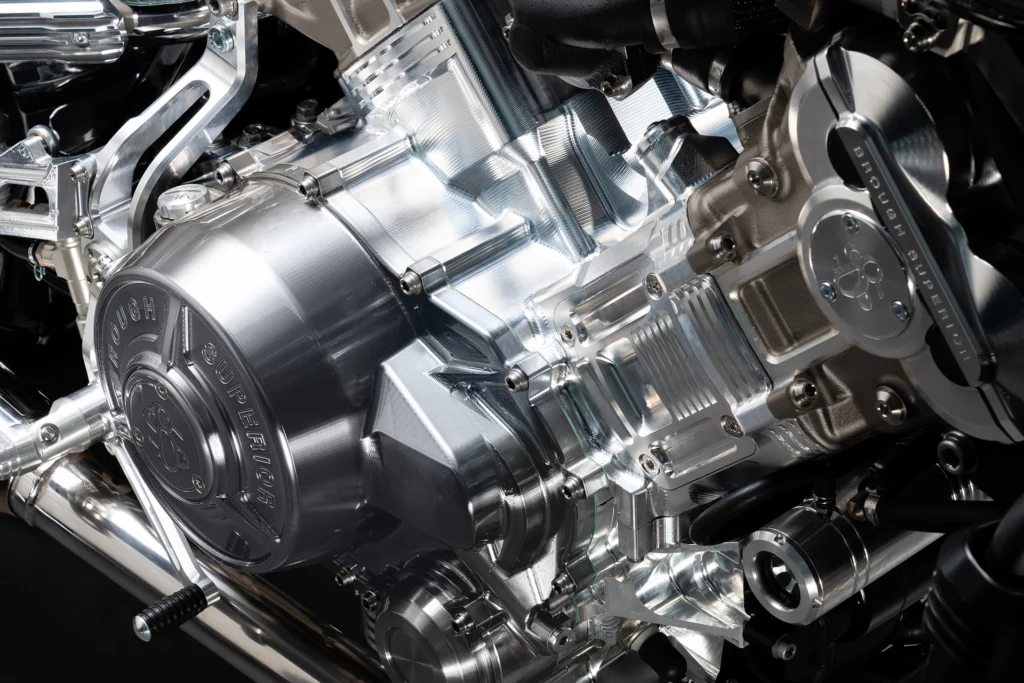

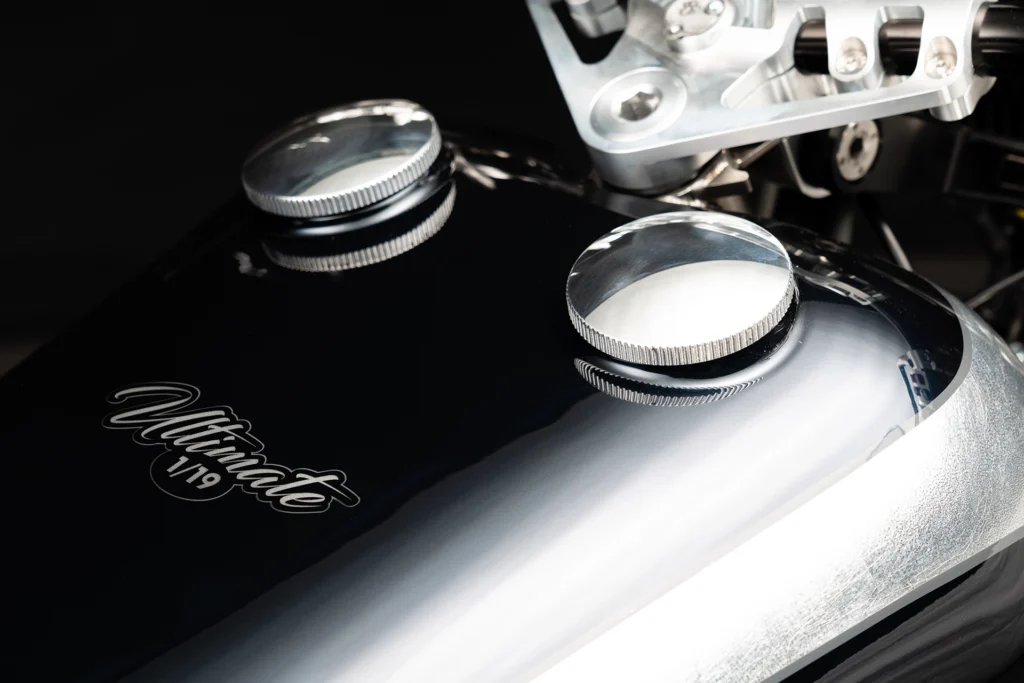

The Ultimate goes further. Its engine blocks are cut from solid aluminium on the 5-axis machining centre at Brough Superior’s Toulouse headquarters, drawing on the experience of machining engine cases for the Aston Martin AMB 001 Pro. The 997cc twin keeps its architecture and displacement and is lighter and stronger for it. Only 19 will be made, a number that recalls the marque’s founding year. Each is numbered and identified by a silver stripe set beneath the varnish along the sides of the tank.
