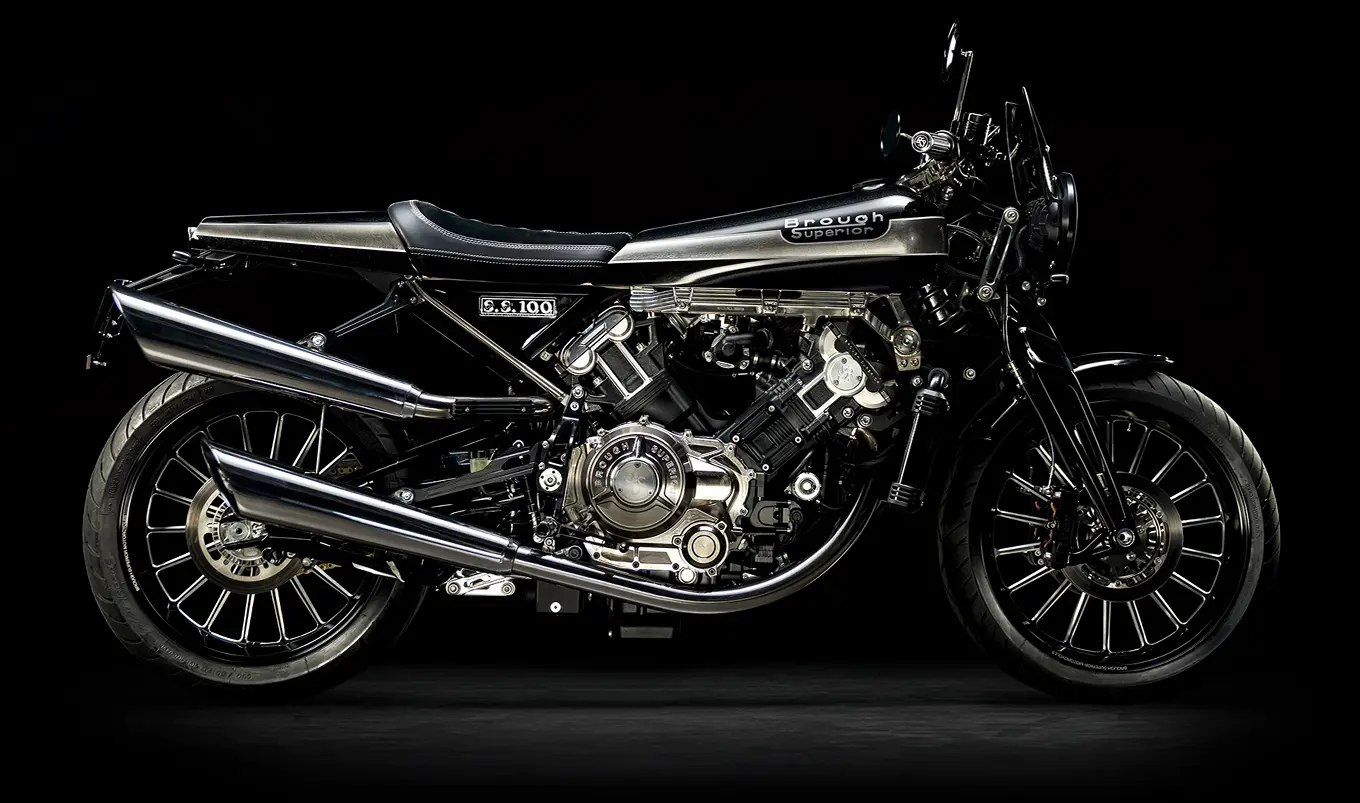

Super Sports 100: Advanced Finish
The SS100 NPC takes its name from Nickel Phosphate electro-deposition, a surface treatment first developed to protect aerospace engine components. Applied to selected chassis and engine parts, it gives a subtle golden hue that sits alongside the titanium and recalls the nickel-plated tanks of the 1920s.
Technical Specifications
Dimensions
- Length
- 2180mm
- Width
- 760mm
- Seat Height
- 820mm
- Wheelbase
- 1540mm
Engine
- Engine
- 997cc watercooled dohc 88° V-twin four-stroke with four valves per cylinder and composite chain / gear cam drive
- Dimensions
- 94 mm x 71.8 mm
- Power
- 102bhp (75kW) at 9600rpm Euro 4 Homologation
- Maximum Torque
- 87Nm (64lb-ft) at 7300rpm
- Compression Ratio
- 11 : 1
- Fuel
- Electronic fuel injection with Synerject ECU and 2 x 50 mm Synerject throttle bodies, each with a single injector
- Gearbox
- 6-Speed
- Clutch
- Multiplate oil-bath clutch with hydraulic operation
Chassis
- Frame
- Machined Titanium frame with Titanium subframe
- Front Suspension
- Fior-type fork CNC machined from solid aluminum with twin articulated triangular titanium links and Preload and rebound adjustable mono-shock with 120mm travel
- Rear Suspension
- Cast aluminum swingarm pivoting in engine crankcases, with monoshock adjustable for preload and rebound damping and progressive rate link with 130mm travel
- Head Angle / Trail
- 23.365° with 93.65mm trail via 38mm fork offset
- Front Brake
- 4 x 230mm Beringer Stainless Steel discs with 2 x four-piston Beringer radial calipers
- Rear Brake
- 1 x 230mm Beringer Stainless Steel disc with 1 x two-piston Beringer radial caliper
- Wheels
- Machined aluminum wheels (18 spokes)
- Front Tire
- 120/70 – 18’’ on 3.50 inches
- Rear Tire
- 160/60 – 18’’ on 4.25 inches
- Weight / Distribution
- 186 Kg (410 lb) split 50/50%
Brough’s First Genius, Refinished
The Super Sports 100 first appeared in 1924 and became the machine most closely associated with T.E. Lawrence. The modern SS100 keeps its classic proportions and George Brough’s original engineering ethos, and each one is handcrafted to order for its owner in Brough Superior’s French workshop.

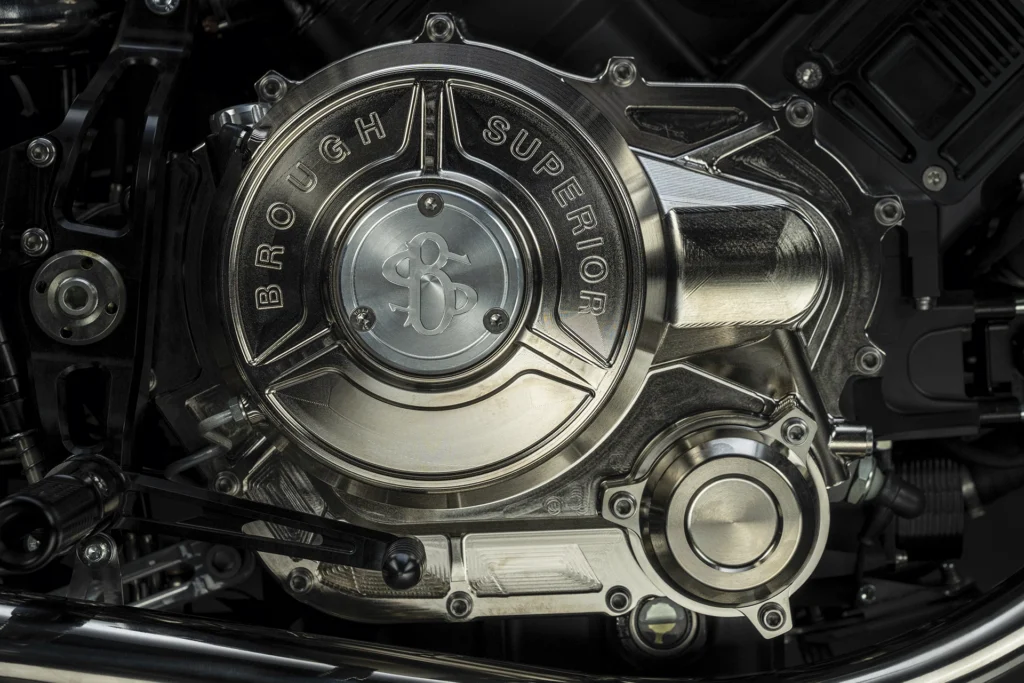

The NPC adds a finish with its origins in aerospace. Nickel Phosphate electro-deposition was developed to protect reactor and rocket engine components. The coating is extremely fine; it hardens and shields each part while giving it a subtle golden hue. A considered selection of the SS100’s signature chassis and engine components carry the treatment. It’s warm grey sits naturally beside the titanium, and its golden reflections recall the nickel-plated fuel tanks of the 1920s, before chrome became the standard.
